Neway Valve (Suzhou) Co., Ltd

Neway Valve is one of leading valve manufactures with the advanced valve plant in the world who can cover a complete valve program in order to satisfy the demand and requirements of our clients.The entire manufacturing process is being controlled in-house, starting with our own R&D center, three foundries and high end assembling & testing plant.
Our product range is covering many valve types like: gate, globe, check, ball, butterfly, nuclear, subsea, control, safety valve & wellhead equipment. All the indicated valve range is being operated within different industries. The majority is being used in the oil & gas, offshore, chemical, power, nuclear, mining and air separation industry.
Neway is able to provide a complete solution of industrial valves with a fully traceable and in-house quality control system. Neway’s proven stable quality, reliability and performance has been acknowledged by key EPC contractors and end-users and results in many approvals, contracts, frame work & investment agreements.

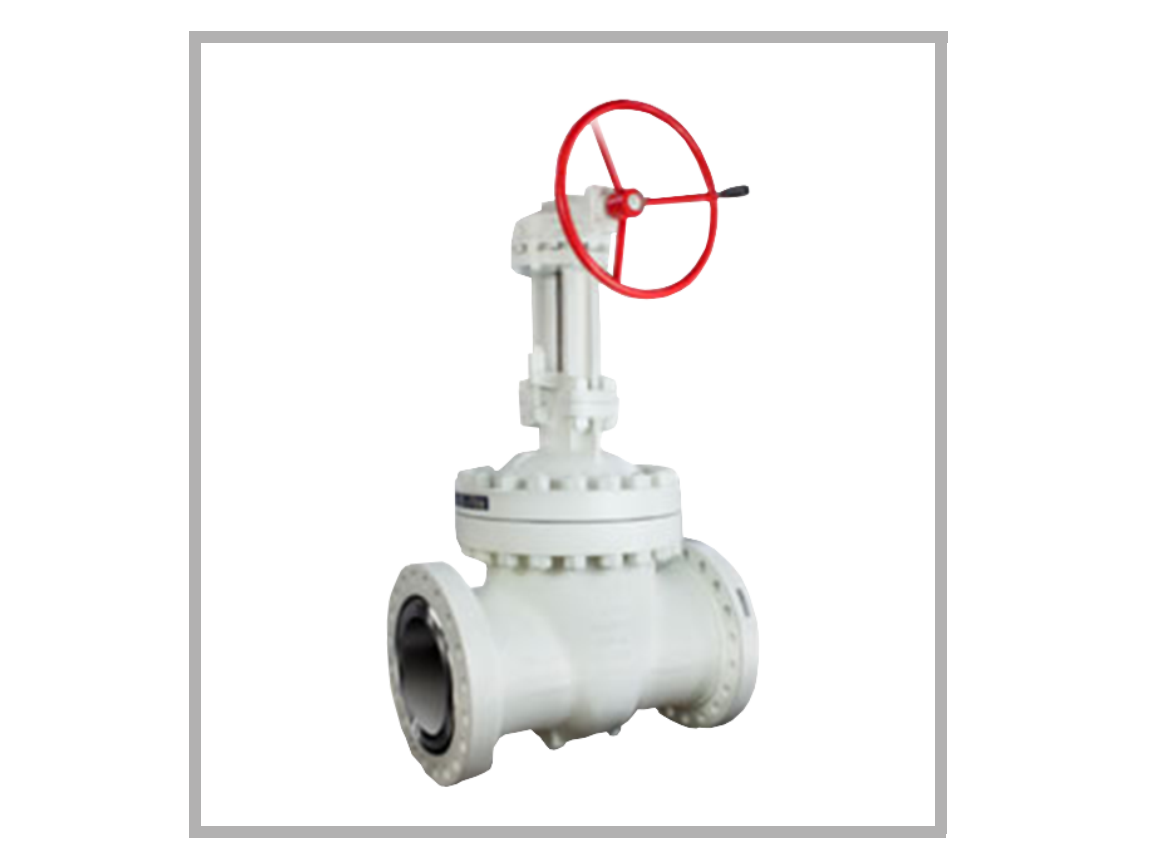

Gate Valve

Neway gate valves are reliable, offering a tight shut-off and low pressure drop. The design covers a wide range of requirements to meet any customer need from general to severe service conditions.
Neway gate valves are in compliance with the latest edition of API600 and ASME B16.34.
Size: NPS 2″~66″(DN50~DN1650)
Pressure Rating: ASME Class150~2500(PN16~PN420)
Body material:Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End connection:RF, BW, RTJ
Operation:Manual, Pneumatic, Electric, Hydraulic

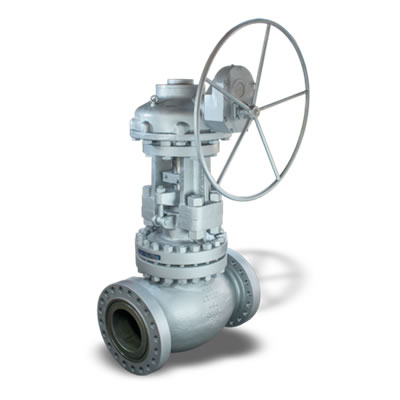

Globe Valve

Neway globe valves are torque seated valve which are used for on-off service as well as for throttling purpose.
Globe valves are widely selected for their short travel. Neway provides two types of construction; rising stem and rising-rotating stem.
Neway manufactures the full series of globe valves, including T type, Y type and angle type.
Size: NPS 2″~24″(DN50~DN600)
Pressure Rating: ASME CLASS 150~2500(PN16~PN420)
Body material:Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End connection:RF, BW, RTJ
Operation:Manual, Pneumatic, Electric, Hydraulic

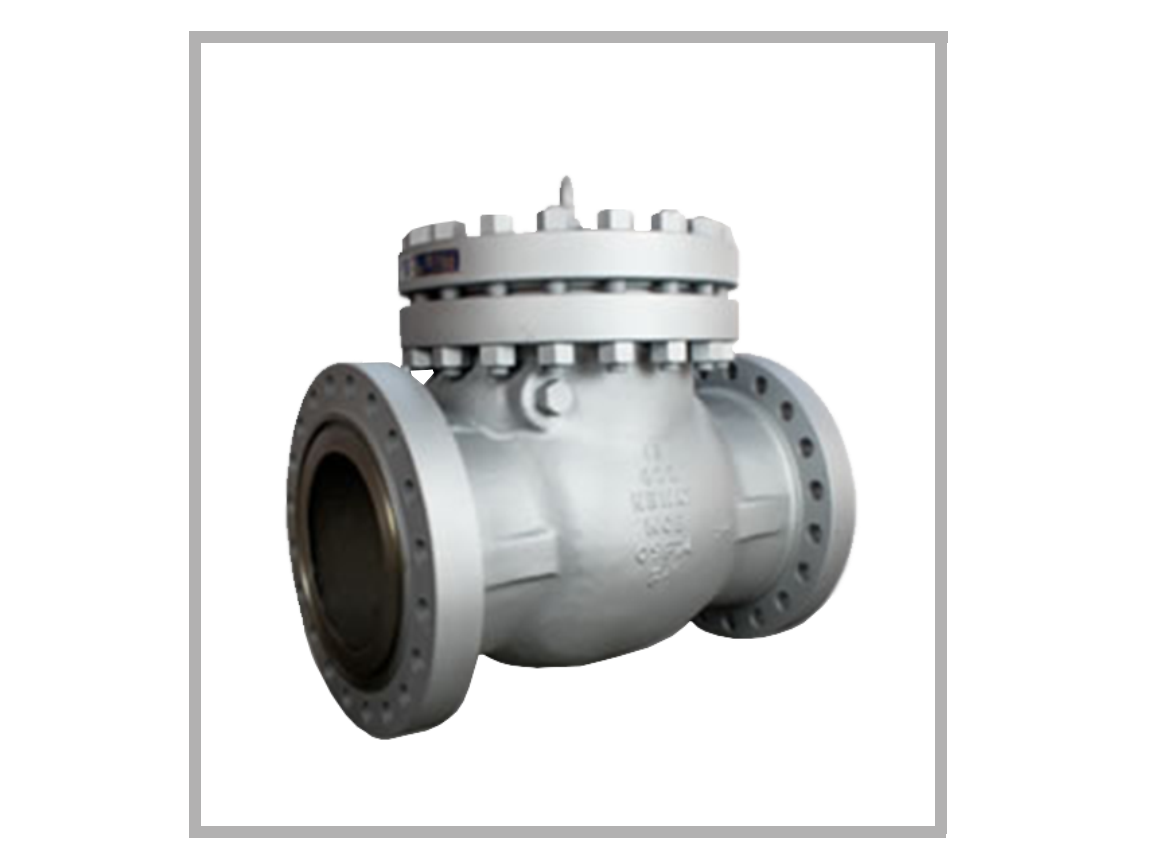

Check Valve

Neway supplies a complete range of swing check valves with both internal and external hinge pin types. External control devices such as damping, locking, and manual override are part of Neway’s expertise.
Size: NPS 2″~64″(DN50~DN1600)
Pressure Rating: ASME CLASS 150~2500(PN16~PN420)
Body material:Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
End connection:RF, BW, RTJ

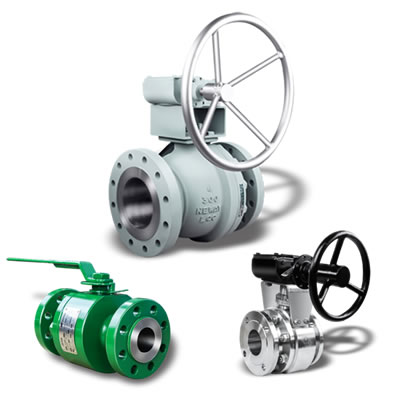

Ball Valve

Neway casted end entry and side entry soft-seated floating ball valves are designed according to ISO17292. These valves are usually applied in low pressure systems (150~300LB) with a wide temperature range (-46℃~200℃). The valves are fire safe designed and have been certified per API607 and API6FA. Neway range consists of one-piece end entry and two-piece split body designs.
Size:1/2″~10″(DN15~DN250)
Pressure Rating: ASME CLASS 150~300(PN16~PN40)
Body material:Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel,exotic alloy etc.
End connection:FLNG, BW
Operation:Manual, Pneumatic, Electric, Hydraulic,ect.

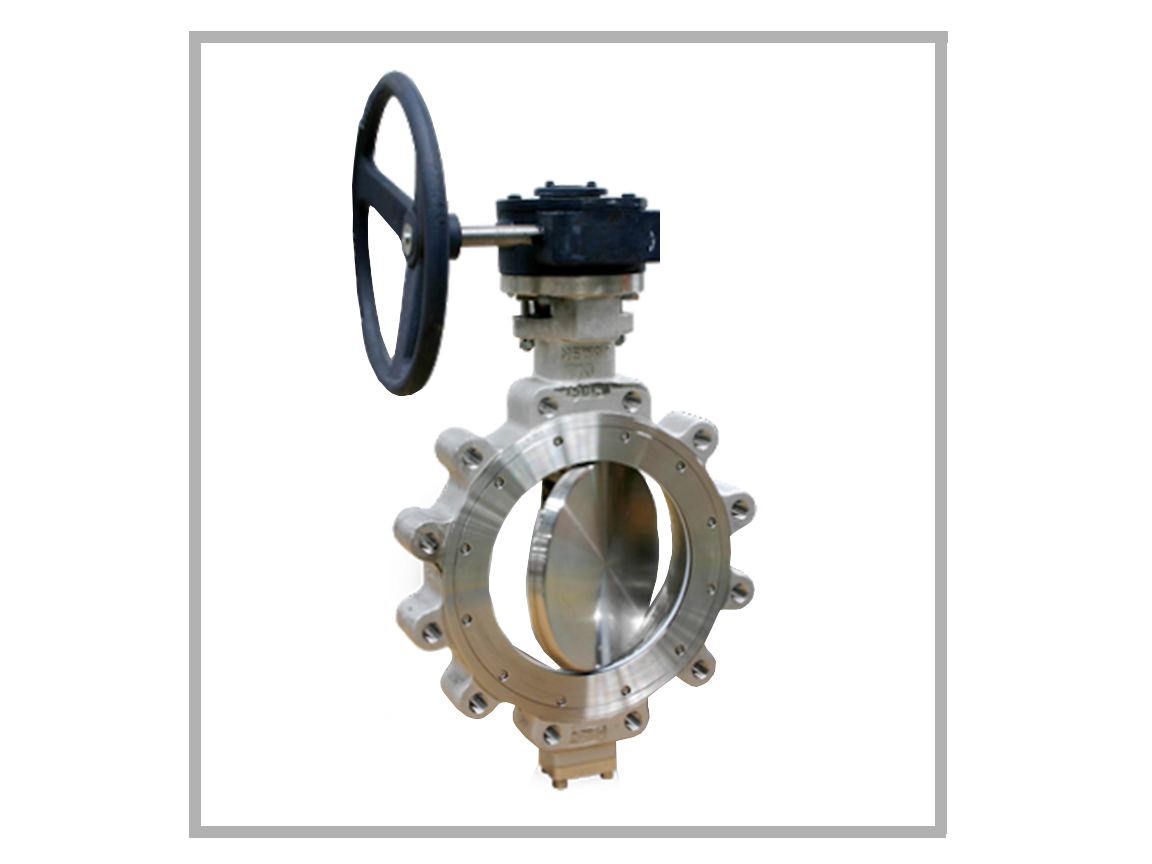

Butterfly Valve

Butterfly valves in the power industry are mainly used in cold water applications,usually in low pressre and large diameter structure. Neway offers concentric and triple offset(for higher relative temperature) butterfly valves.
Size:2″~72″(DN50~DN1800)
Pressure Rating: ASME CLASS 150~600 (PN20~PN110)
Body material: Cast iron, Carbon steel, Stainless steel
End connection: WAFER,LUG,RF
Operation: Handwheel, Gearbox, Pneumatic, Hydraulic, Electric

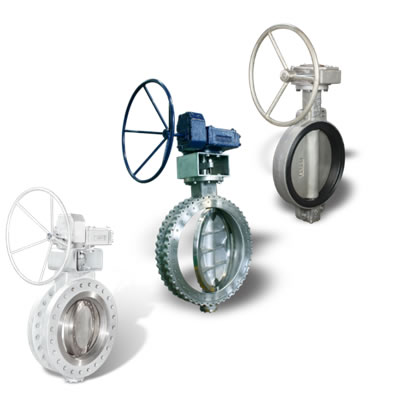

Concentric Butterfly
Valve Double Offset Butterfly
Valve Triple Offset Butterfly Valve

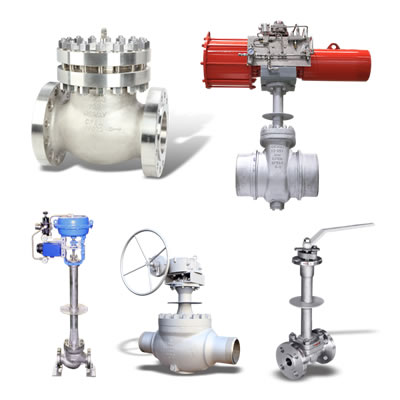

Cryogenic Valve

Neway cryogenic gate valves (Min design temperature: -196℃) offer low operating torques, consistent and excellent sealing performance and a long service life. They’re widely used in LNG, LPG and other low temperature industries.
Size:1/2″~24″(DN15~DN600)
Pressure Rating: ASME CLASS 150~2500(PN16~PN250)
Body material:Stainless steel
End connection:RF, BW, RTJ
Operation:Manual, Pneumatic, Electric, Hydraulic

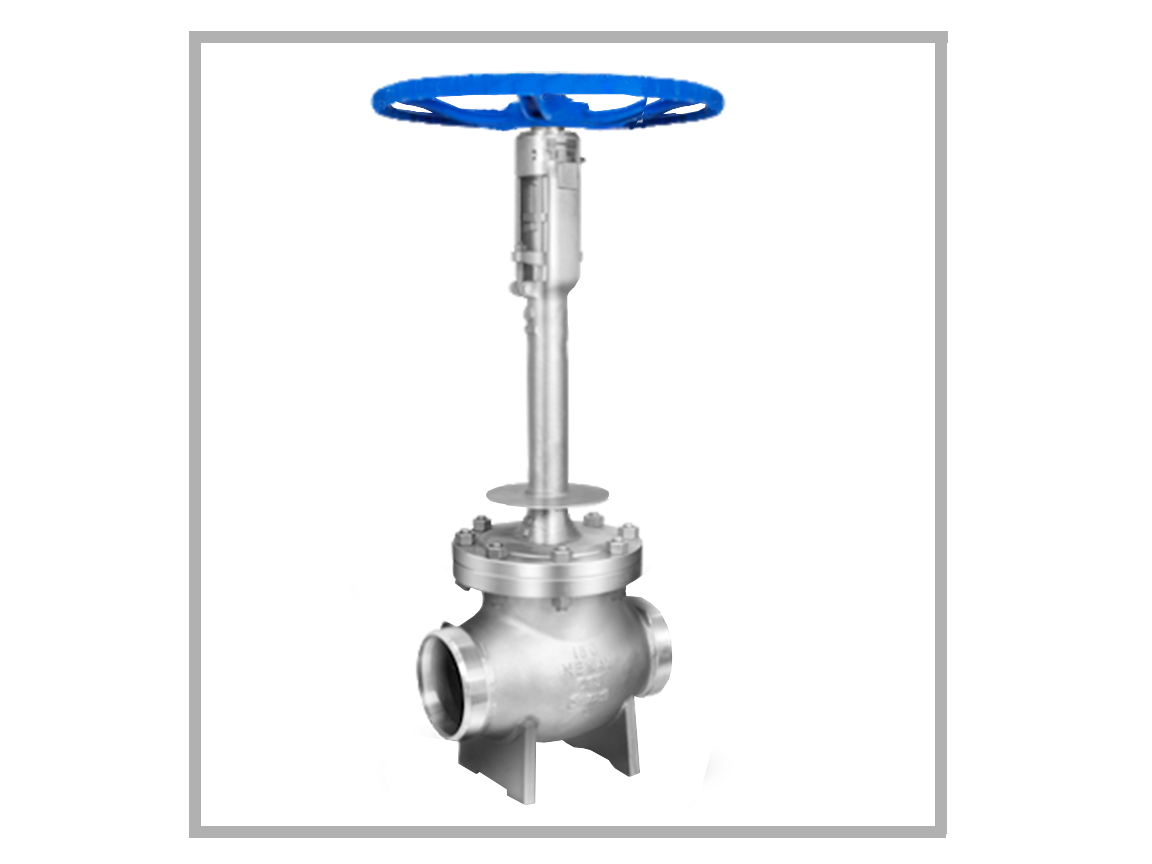

Cryogenic Gate Valve
Cryogenic Globe Valve
Cryogenic Check Valve
Cryogenic Ball Valve
Cryogenic Offset Butterfly
Cryogenic Control Valve

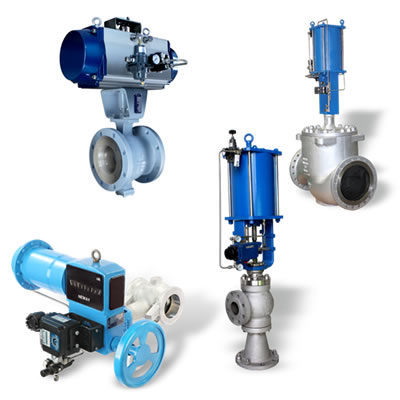

Control Valve

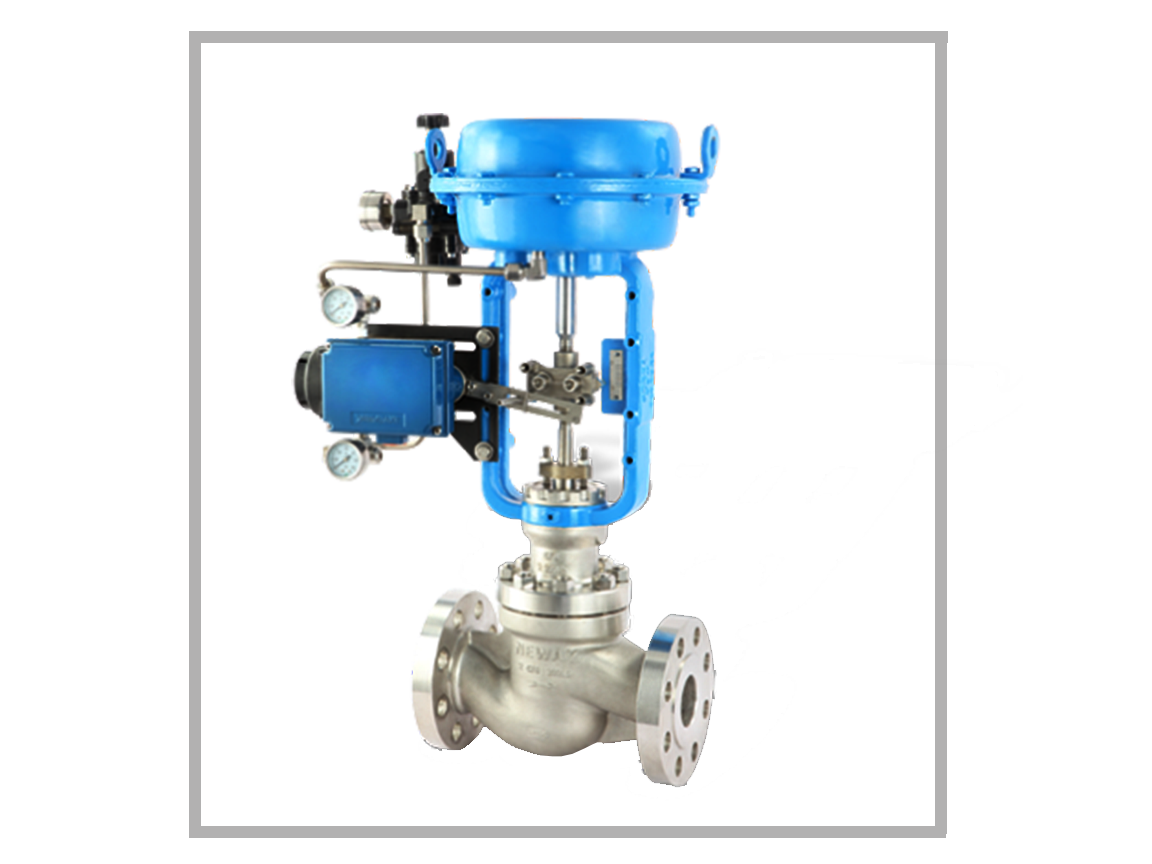

Single-seated Control Valve
Neway single seated control valves have a top guiding structure. The valve body flow path is in the S type which provides a lower pressure loss, larger flow capacity, wider control range, higher control accuracy and offers a better performance in resistance to vibration. Valves are usually equipped with a pneumatic diaphragm actuator with a compact whole structure, high anti-pressue ability and can be applied to control different pressure and temperature fluid..
Size: 3/4″~12″(DN20~DN300)
Pressure Rating: ASME CLASS 150~2500 (PN16~PN420)
Body material: Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel
Operation: PDL series pneumatic actuator, PCL series cylinder actuator, Electric actuator

Eccentric Rotating Control
Concentric Type V-notch Segmental
Cage-guided Control Valve
Resistance to Erosion Angle Type
Bellow Seal Control Valve
Multil-stage Depress Pressure
